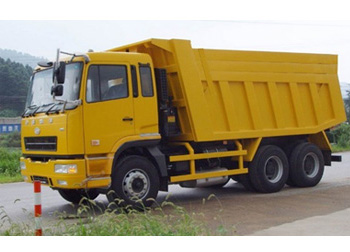

| Model | HN3500 mining dump truck 6×4 | |
| Summary | CAMC mining dump truck is a high-end off-highway dumper created by Anhui Hualing Automobile Co., Ltd with international advanced technology, specific to various mines and hydropower engineering. | |
| Engine model | Hangfa WD615.69 | Weichai WD12.336 |
| Rated output/speed(kw/ r/min) | 247/2200 | 247/2200 |
| Max torque/speed(N.m/ r/min) | 1350/1100-1600 | 1350/1300-1500 |
| Gearbox | Fast RTD11509C or 9JS180 | |
| Hydraulic lifting structure | Complete set from Hayward (including pump, cylinder, valve etc.) | |
| Overall dimension (L × W × H)(mm) | 8470×3080×3890 | |
| Inside dimension of container (L × W × H) | 5400×2900×1470 | |
| Effective volume of container(m3) | 23 | |
| Container form | Standard configuration: flat bottom; option: tail-raising | |
| Drive form of CAMC Heavy Truck Mining dump truck Series | 6×4 | |
| Axle base(mm) | 3675+1500 | |
| Minimum ground clearance(mm) | 360 | |
| Approach angle/departure angle(o) | 31/55 | |
| Max total mass(kg) | 52000 | |
| Complete truck curb mass(kg) | 22000 | |
| Loading mass(kg) | 30000 | |
| Max speed(km/h) | 50 | |
| Front axle/drive axle | Axle from Meritor (speed ratio 11.04; optional speed ratio 11.39) | |
| Tire | 13.00-25(14.00-24for option) | |
| Fuel | —— | |
| Max grade ability (%) | 40 | |
| Lifting time(s) | ≤25 | |
| Max angle of inclination(o) | 50 | |
| Paint color | Yellow and green (two colors for option) | |
