Description

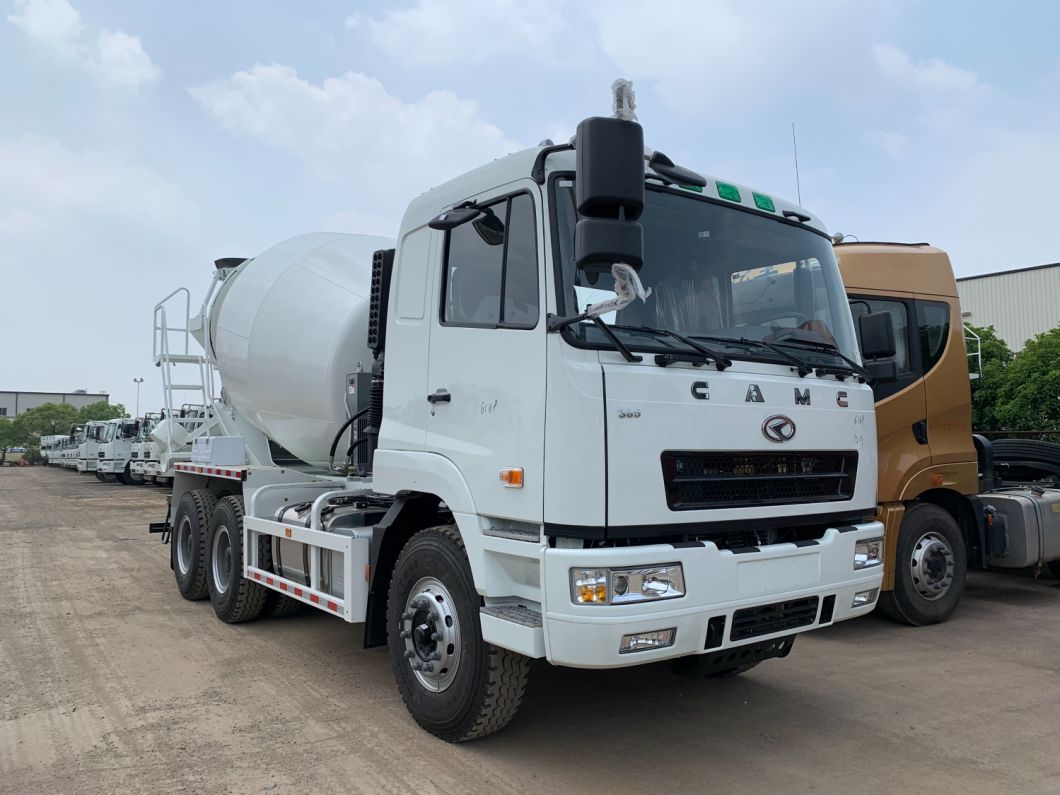

16 m3 concrete mixer is mainly used for mixing and transporting concrete mixture between long distances. It is able to mix cement, asphalt and other materials and is widely used in construction industry both home and abroad. Our mixer trucks are preferred for smart appearance, good performance and convenient operating system.
Features of Concrete Mixer (16 m3)
1. It can effectively delay pre-hardening, avoid stratification and eduction, and ensure construction quality and speed.
2. This mixer truck is configured with a famous engine such as Caterpillar and Cummins.
3. It is a professional manufacturer of truck-mounted concrete mixers in China.
4. This truck has two axles both in the front and back. It is very safe to be operated.
Technical Parameters of 16 m3 Mixer Truck
|
Whole Vehicle Performance and Parameters
|
Items
|
Unit
|
Parameters
|
|
16 m3 (HOWO-8 × 4 Chassis)
|
|
Model
|
|
HDT5313GJB (16375)
|
|
Total Length
|
mm
|
10850
|
|
Total Width
|
mm
|
2496
|
|
Total Height
|
mm
|
3980
|
|
Chassis Model
|
|
HOWO-ZZ1317N3667C1
|
|
Total Vehicle Weight (Standard)
|
kg
|
31000
|
|
Curb Weight
|
kg
|
16600
|
|
Wheelbase
|
mm
|
1800+3600+1350
|
|
Front Tread
|
mm
|
2022
|
|
Rear Tread
|
mm
|
1830
|
|
Front Overhang (mm)
|
mm
|
1500
|
|
Rear Overhang (mm)
|
mm
|
2600
|
|
Min. Turning Diameter (m)
|
m
|
11.5
|
|
Max. Traveling Speed (km/h)
|
km/h
|
90
|
|
Steering Mechanism
|
|
ZF8098 (German)
|
|
Gear Box
|
|
HW18709
|
|
Engine
|
Oil Consumption per 100 km (Under Limited Conditions)
|
L
|
≤ 31
|
|
Model
|
|
WD615.95, WD615.96, WD615.95E, WD615.96E
|
|
Type
|
|
In-Line 6-Cylinder, Water-Cooled, Supercharged, Inter-Cooled, Electric (Direct) Injection Diesel Engine
|
|
Max. Power
|
KW
|
375 HP (2200 r/min)
|
|
Max. Torque
|
N. m
|
1350; 1500
|
|
Max. PTO Torque
|
N. m
|
600 (1100-1400 r/min)
|
|
Emission Standard
|
|
China III, Euro III
|
|
Working Device
|
Geometric Volume of Mixing Drum
|
m3
|
24.1 m3
|
|
Max. Mixing Cubage (m3)
|
m3
|
16
|
|
Mixing Drum Obliquity
|
°
|
10°
|
|
Mixing Drum Rotating Speed
|
r/min
|
0-14
|
|
Feeding Speed (m3)
|
m3/min
|
≥ 3.5
|
|
Discharging Speed (≥ m3)
|
m3/min
|
≥ 1.5
|
|
Slump
|
mm
|
100-230
|
|
Leftover Rate
|
%
|
Nearly Zero
|
|
Water Tank Capacity (L)
|
L
|
260
|
|
Max. Mixing Drum Diameter (mm)
|
mm
|
φ2412 mm
|
|
Water Supply Mode
|
|
Water Pump; Pneumatic Pump
|
Established in 2003, Auhui Hualing Automobile Co., Ltd is a leading supplier and exporter of 16 m3 concrete mixers in China. In addition to this mixer truck, our products also cover heavy tractor truck, cargo truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, heavy axle, and so on. With decades of production and sale experience, our 16 m3 truck-mounted concrete mixers are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc.
