| Relevant Dimensions(mm) | |

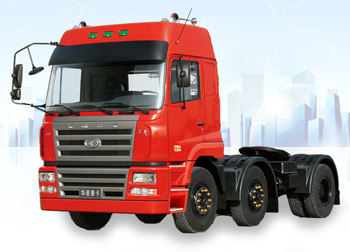

| Type | CAMC Lightweight Tractor 6×2 |
| Wheel Base | 1850+2600 |
| Overall Length | 6870 |
| Overall Width | 2495 |
| Overall Height | 3600 |
| Warehouse Length | |
| Warehouse Width | |
| Warehouse Height | |
| Front Overhang | 1370+75 |
| Rear Overhang | 1020 |
| Frame Ground Clearance | 1360 |
| Frame Height | 278 |
| Frame Width | 940/842(front/rear) |
| Wheelbase | 2065/1860 |
| Power of CAMC Lightweight Tractor 6×2 | ||
| Engine Type | WP10.310E32 | WP10.290E32 |
| Pattern | In-line, Water Coiling, Six-cylinder | In-line, Water Coiling, Six-cylinder |
| Oil Feeding System | Inner EGR | Inner EGR |
| Rated Power/Rotate Speed (KW/r/min) | 228/2200 | 213/2200 |
| Max. Torque/Rotate Speed (Nm/r/min) | 1250/1200-1600 | 1145/1200-1600 |
| Cylinder Diameter×Stroke (mm) | 126×130 | 126×130 |
| Admission Method | Inter-cooling | Inter-cooling |
| Output Volume (L) | 9.726 | 9.726 |
| Idling Speed | 600±50 | 600±50 |
| Way of Cooling | Water-cooling | Water-cooling |
| Max.Net Power/Rotate Speed (KW/r/min) | 224/2200 | 209/2200 |
| Max.Net Power/Rotate Speed Fuel Feeding | 0.178 | 0.173 |
| Noise Db(A) | <93 | <93 |
| Emission | Euro-3 | Euro-3 |
| Weight (kg) | Steering System of CAMC Lightweight Tractor 6×2 | Clutch System | |||
| Curb Weight | 7500 | Redirector | ø100 | Type | ø430 Pusher Clutch |
| Overall Weight | 44800 | Steering Kinetic Pump | Liquid Pump | Control System | Hydraulic Pneumatic Control |
| Overall Mass of Quasi-tractor | 37105 | ||||
| Transmission Performance | Brake System of CAMC Lightweight Tractor 6×2 | Other Parameters | |||
| Top Speed | 120 km/h | Type | Double-loop Pneumatic Braking | Type of Tires | 11.00R22.5 |
| Max Gradient | 25% | Type of Brake | Drum Brake | Fuel Tank Capacity (L) | 380L |
| Model of Gearbox | RTO-11509F | Parking Brake | Spring Type | Capacity of Batteries (Ah) | 135 Ah |
| Gears | 9 | Emergency Brake | Spring Type | ||
| Drive Axle Speed Ratio | 4.44 | ||||
